Beobachtungen:

SEVA-2

facts and data


Abb. 01:
Abb. 02:
Abb. 03:
Abb. 04:

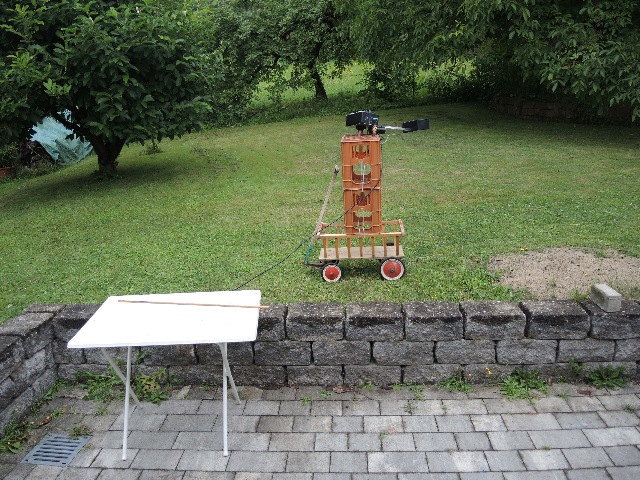

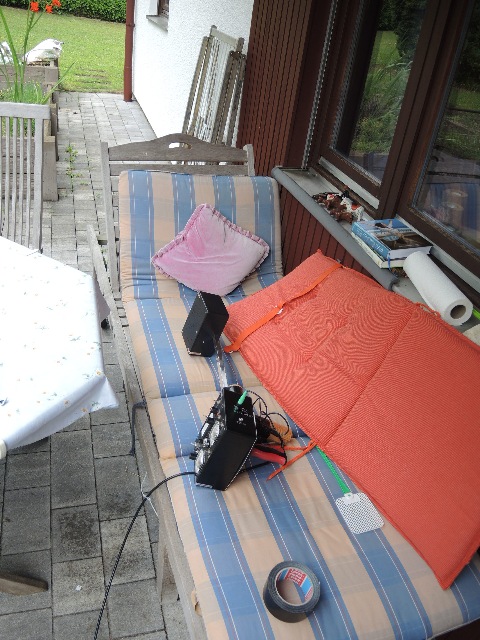

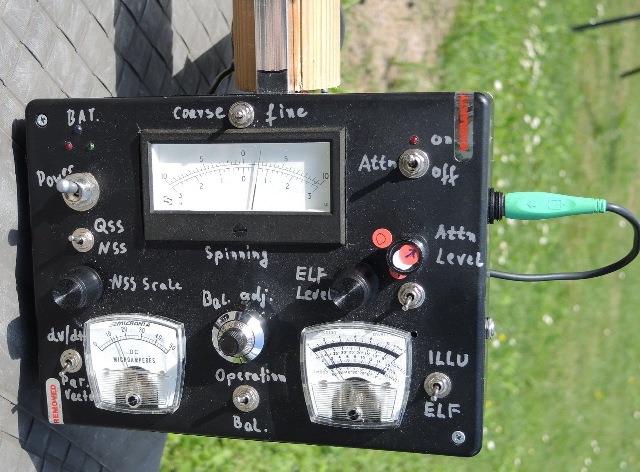

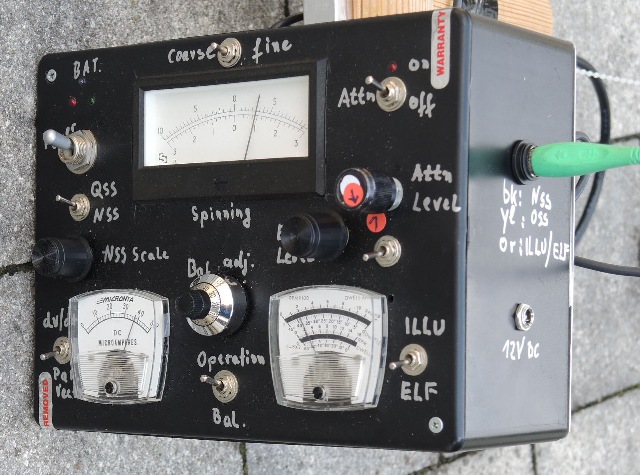

Abb. 05:         misprint: charger with 12 V AC  (not DC!)

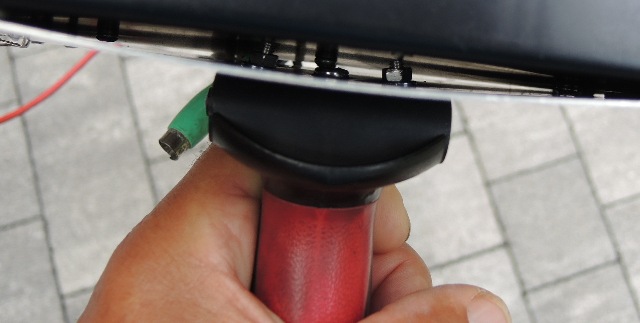

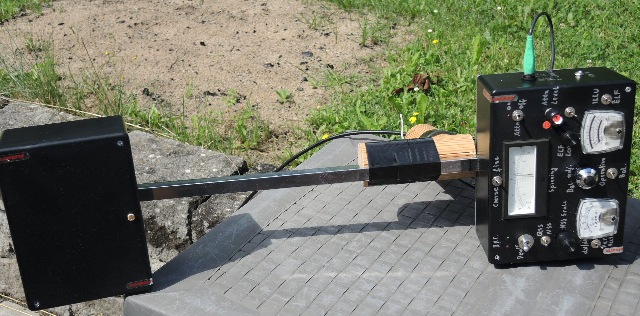

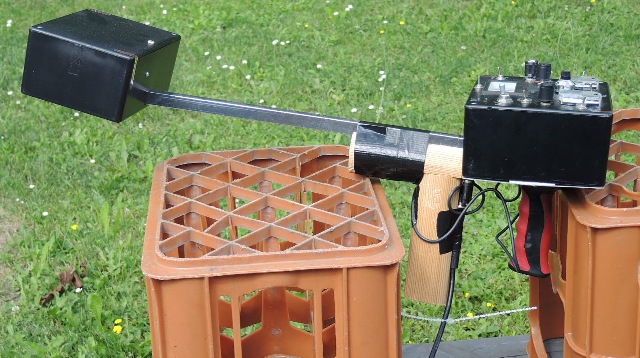

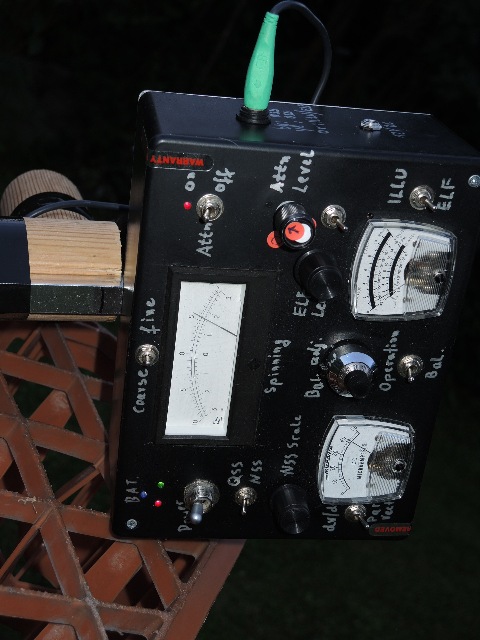

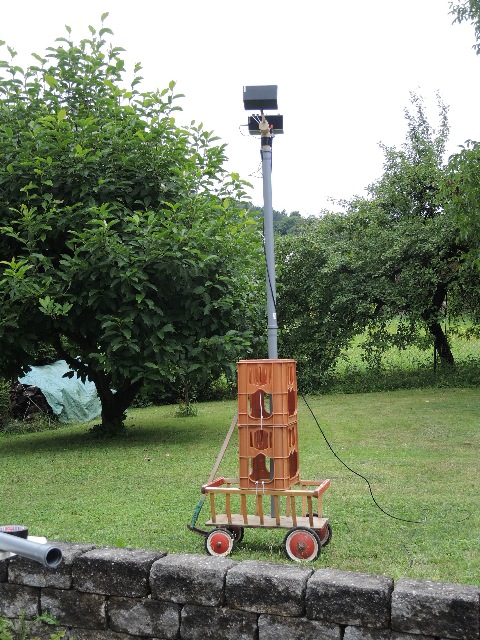

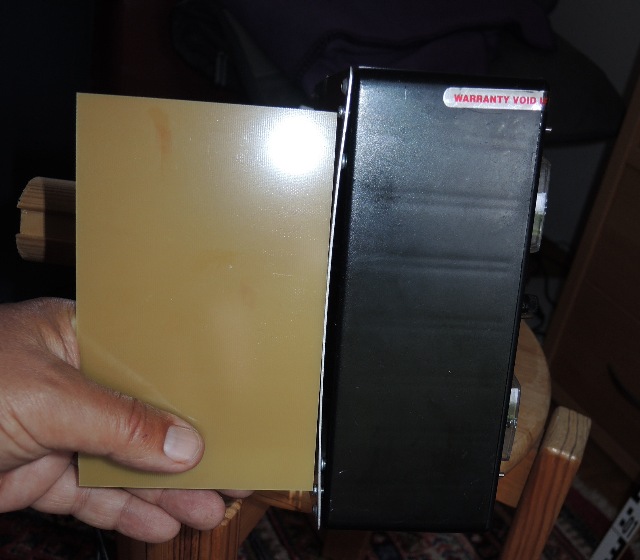

Abb. 06: plastic handle, some screws bend the bottom of the black box (FB)
Abb. 6a: bottom, aluminium plate under mechanical stress (FB)


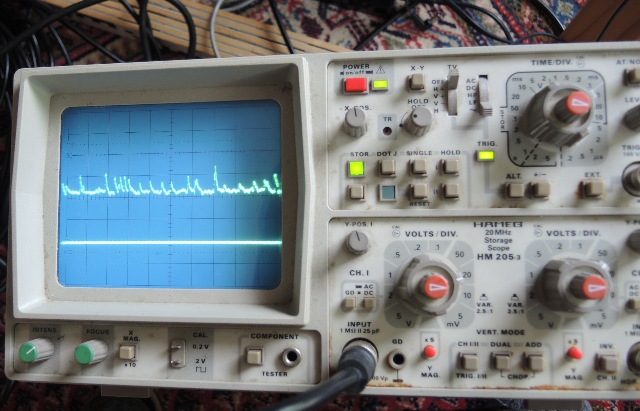

Abb. 7:   Y: 20 mV/div  X:  0.5 s/div     CH1: QSS, CH2: zero, 0 Volt
normal signal, output voltage:   ~40 mV - 50 mV      (FB)
Abb. 08:  continues next figure

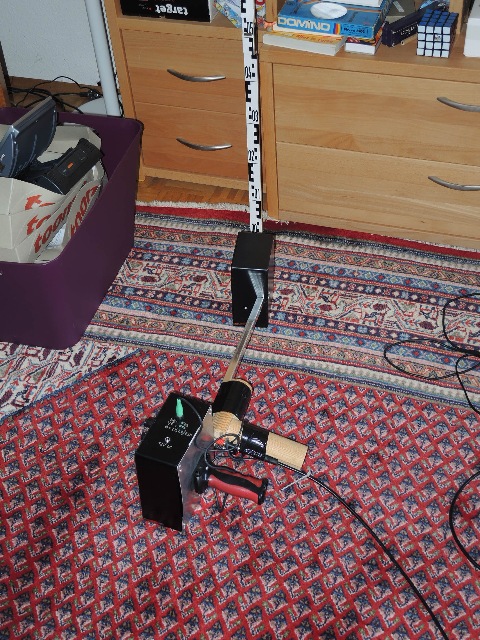

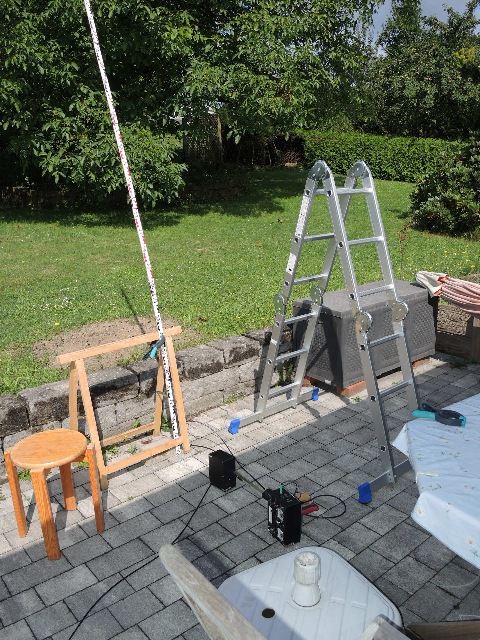

Abb. 09: SEVA-2  is moved up and down along the scale, axis of handle is horizontally (FB)

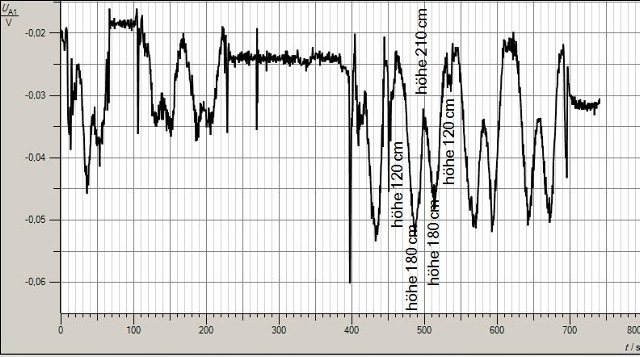

Abb. 10: from t = 400 to  t= 700 s:   continously moving from h=120 cm to h= 210 cm - and back,  and again ...     at h=180 cm there is a minimum. at h=120 and h=210 a maximum,
end time 10:35
2016-07-29-1035-wohnzimmer-ge-vertikal-bewegung.labx (FB)

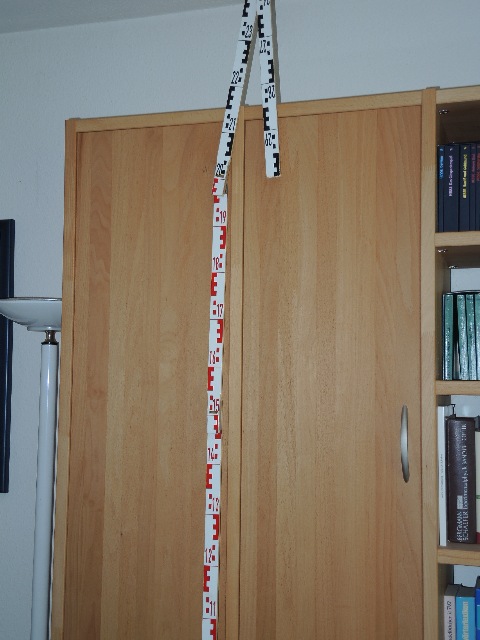

Abb. 11: moving up and down, outdoor, metric scale, axis of handle is horizotally (FB)

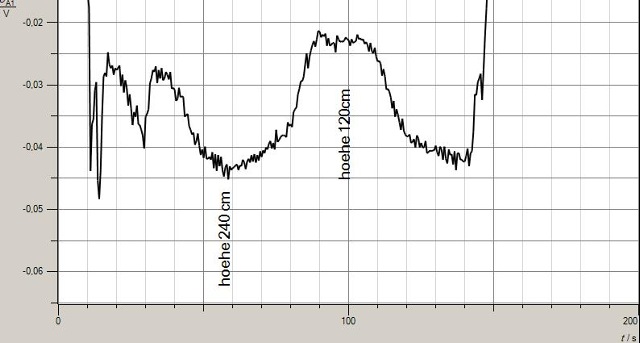

Abb. 12: SEVA is moved up and down along the scale from h=120 cm to h=240 cm
end time: 10:42
2016-07-29-1042-draussen.labx (FB)

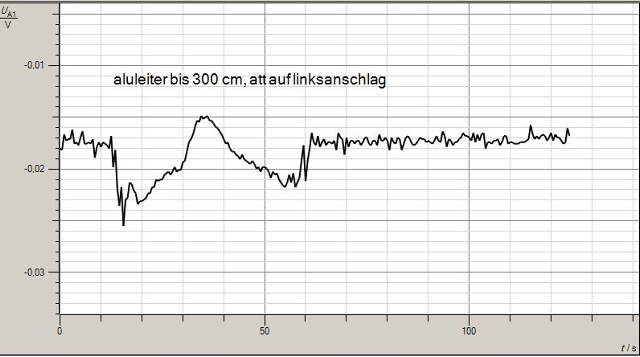

Abb. 13: outdoor,  from  h= 80 cm to h= 300 cm  back and forth, attenuation  CCW max.
end time 10:58
2016-07-29-1058-draussen-alu-leiter-att-links-40digits.labx    (FB)

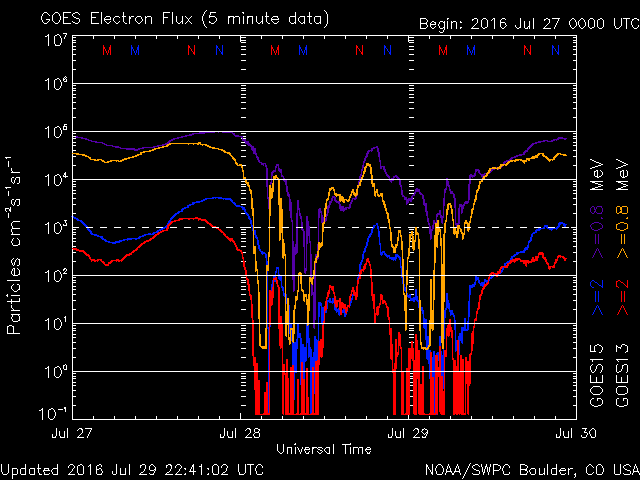

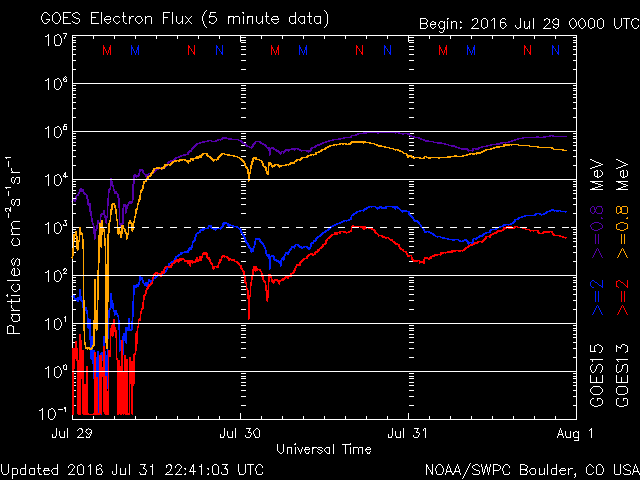

Abb. 13a: http://www.n3kl.org/sun/noaa_archive/2016/Jul_27noaa_elec_3d.gif
Abb. 13b: http://www.n3kl.org/sun/noaa_archive/2016/Jul_31/noaa_elec_3d.gif

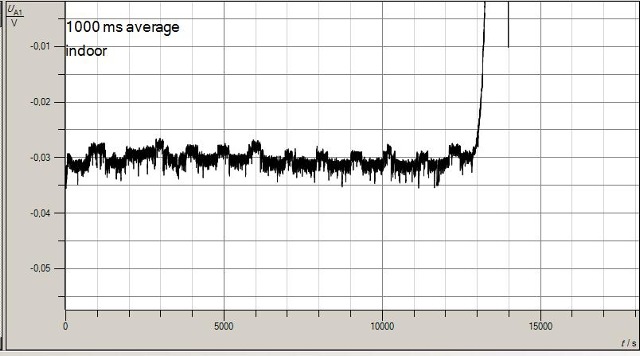

Abb. 15: indoor, 1000 ms average, at t=12500 s the battery was low.
start time 13:03 end time 16:57
2016-07-29-1657-indoor.labx  (FB)

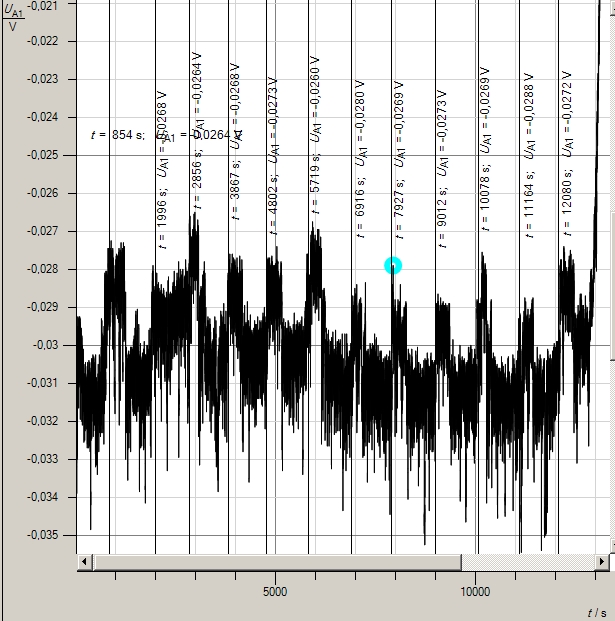

Abb. 15a:  Periodical structure with 1024 seconds  or  17 minutes
2016-07-29-1657-indoor.labx  (FB)
Abb. 15b:  Periodical structure with 1024 seconds  or  17 minutes (FB)


mechanical problems with plastic handle

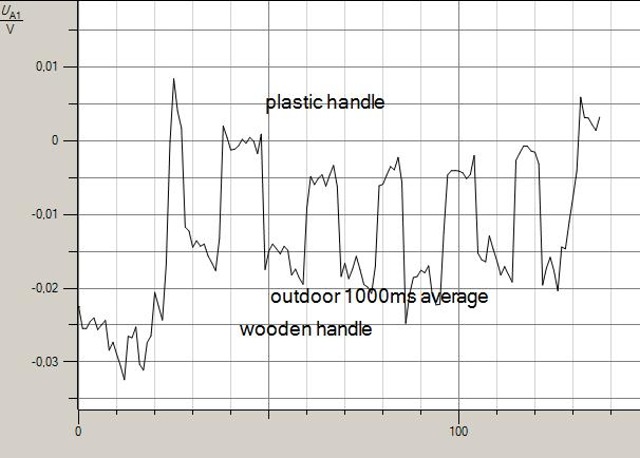

Abb. 16: supporting the instrument either with the plastic handle or the wooden handle,
mechanical problems.
2016-07-29-2120-wood-plastic-handle.labx  (FB)


Outdoor, influence of temperatur (sunlight)

Abb. 17: outdoor (FB)

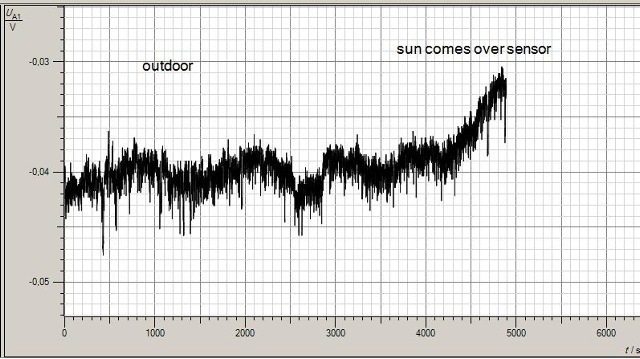

Abb. 18: time dependent signal, at t= 4500 s sunlight comes over the sensor.
start time 7:53  end time 09:13
2016-07-30-0913-outdoor-sun.labx (FB)

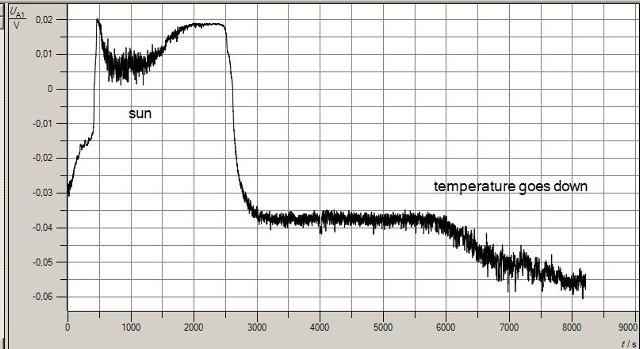

Abb. 19: time dependent, sun warms the instrument, start time:17:58, end time 20:17
temperature goes down on evening
2016-07-30-2017-outdoor-sun.labx (FB)



crossing water vein

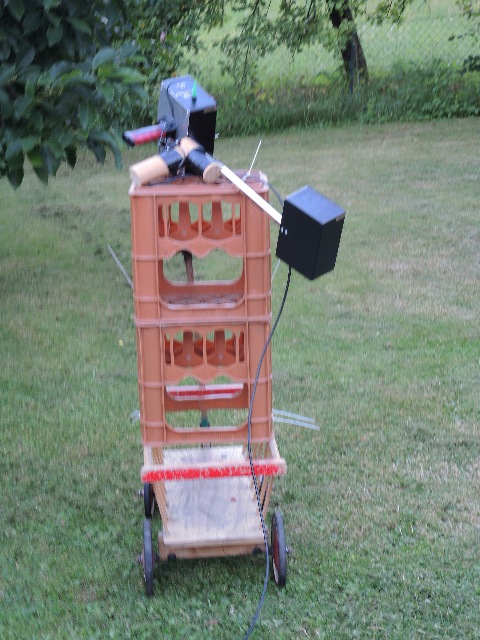

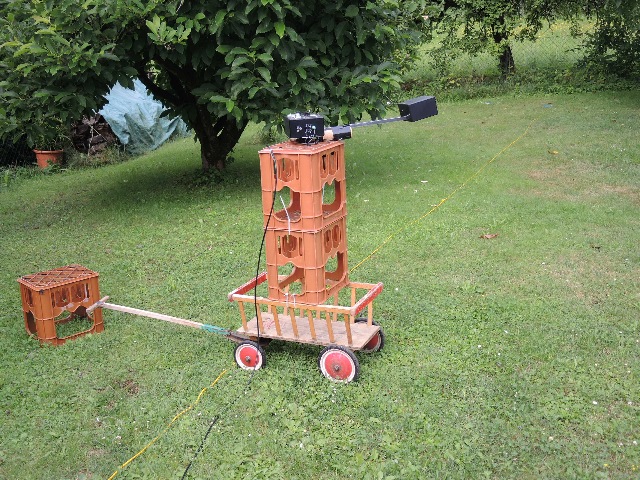

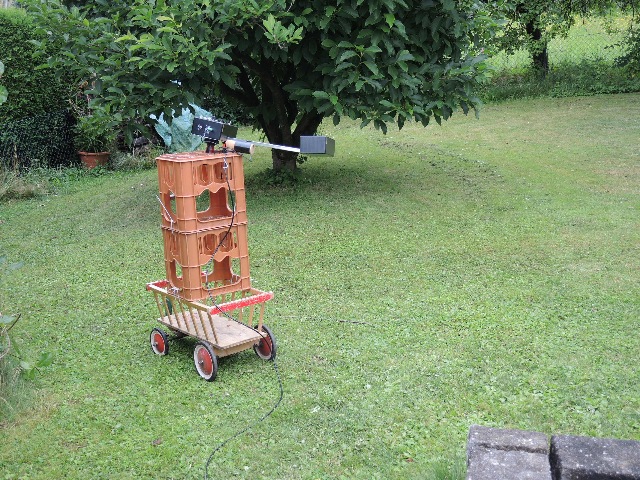

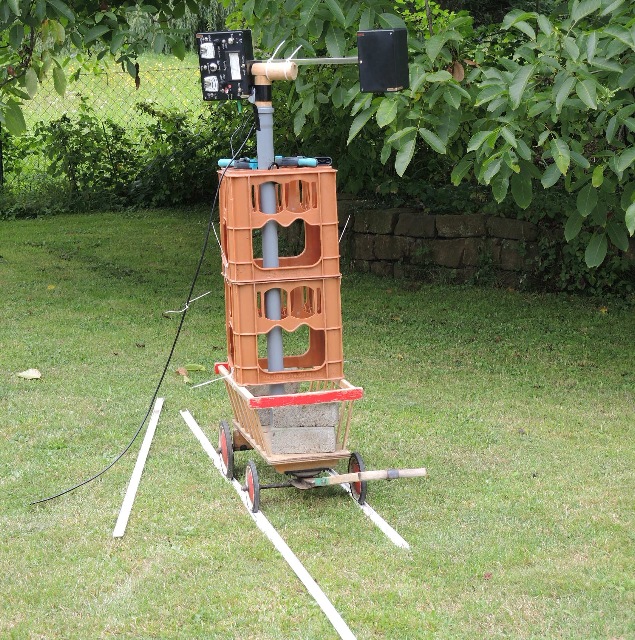

Abb. 20: wooden buggy, crossing a water vein, moving  south north (FB)

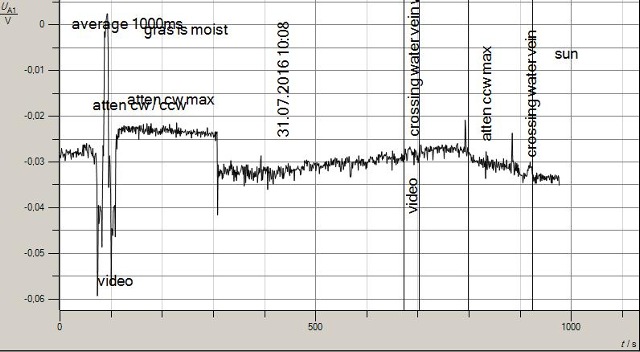

Abb. 21:wooden buggy, different positions of the potentiometer for attenuation,  CW  and CCW
at t=690s video when crossing the water vein,  at t=920s crossing again.
2016-07-31-1018-cradle-water-vein-attenuation.labx   (FB)
Abb. 21a: Zoom,
2016-07-31
-1031-cradle-water-vein-attenuation-cw-max.labx   (FB)

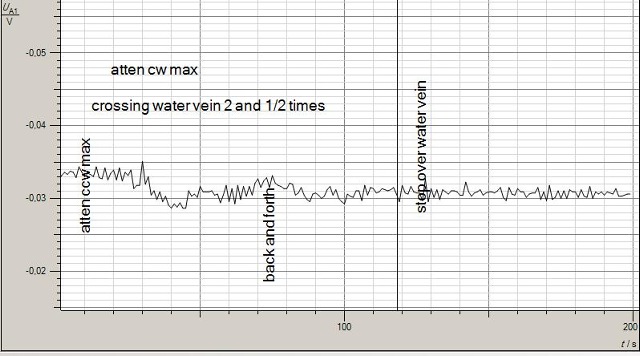

Abb. 22: wooden buggy, crossing the water vein, twice and a half, at t=120 s stop of movement over water vein
2016-07-31-1031-cradle-water-vein-attenuation-cw-max.labx (FB)

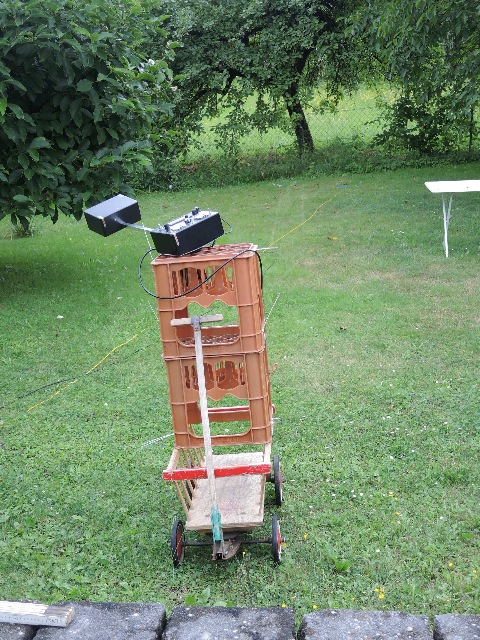

Abb. 23: buggy, moving east-west (FB)

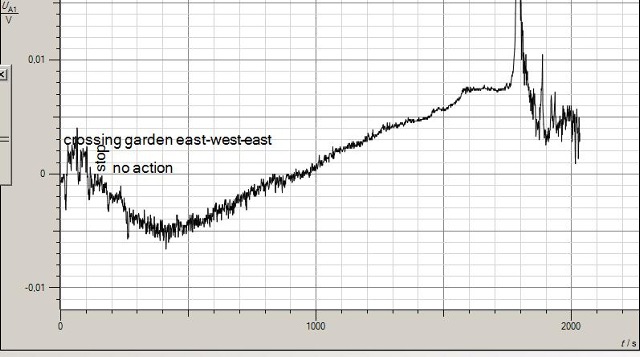

2016-07-31-1159 cradle-crossing-garden-east-west-east-001_g.jpg
Abb. 24: crossing garden  from east to west and back,
t = 0 to 120 crossing;  t > 120 s : no action;  end time: 11:59
2016-07-31-1159 cradle-crossing-garden-east-west-east    (FB)
2016-07-31-1159 cradle-crossing-garden-east-west-east-002_g.jpg
Abb. 25:  Zoom; t = 30 to t= 60:  east-west; t=60 to t = 100: west-east.
2016-07-31-1159 cradle-crossing-garden-east-west-east(FB)

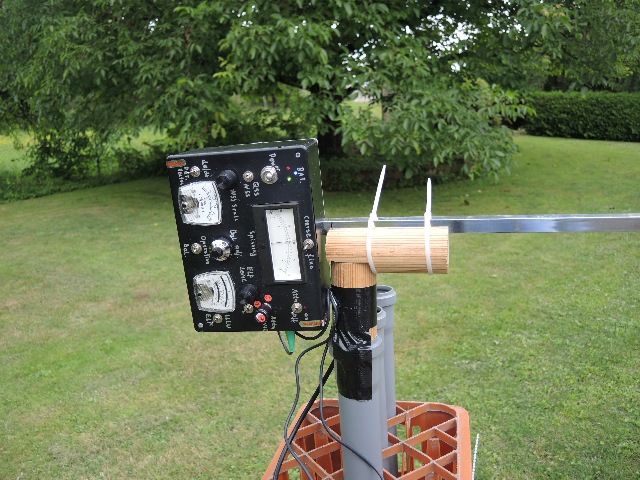

Abb. 26:  2016-08-01, outdoor, handle axis horizontally (FB)
Abb. 27: 180 degree turned around vertical axis, 2016-08-01 20:52 (FB)
Abb. 28: 2016-08-01 20:53 after turning 180 degree (FB)

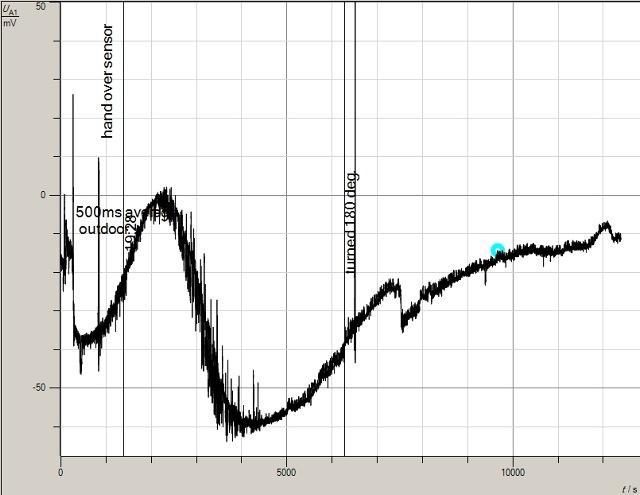

Abb. 29:  outdoor, handle axis horizontally, 500 ms average,
at t= 6200 s --> the system was turned 180 degree around a vertical axis (see pictures 26 and 27)
The temperature decreased during end of the day from 18°C to 13°C, sundown ~ 21:00
start time: 19:04, end time: 22:31
2016-08-01-2231-outdoor-vertical-180-002 (FB)


ELF-Signal

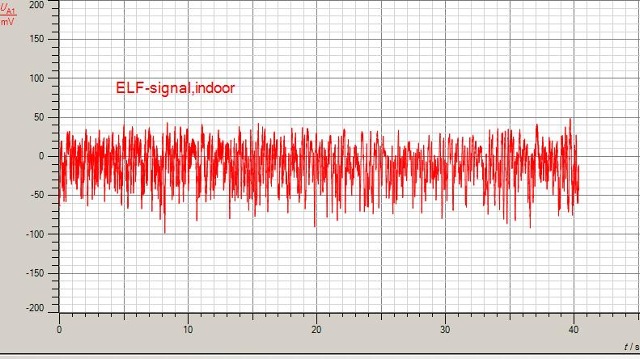

Abb. 30: ELF-Signal indoor

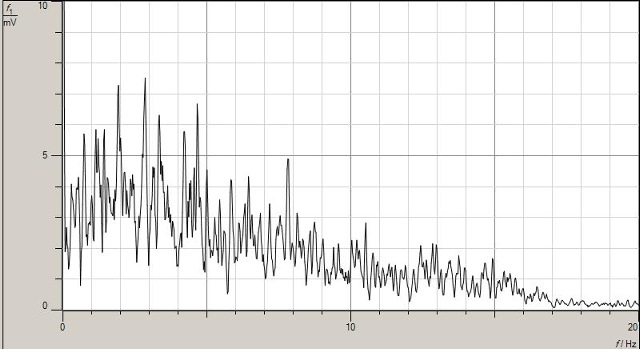

Abb. 31: FFT,  ELF-Signal indoor
Abb. 32: over water vein (FB)

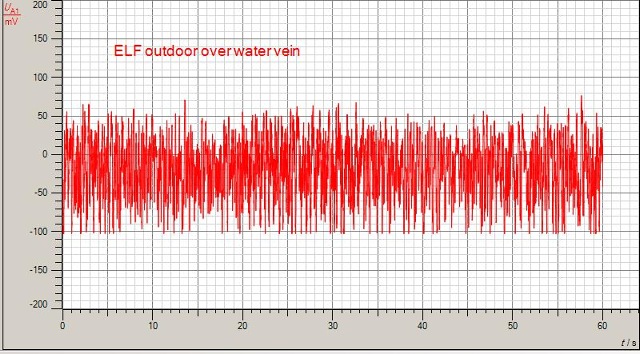

Abb. 32a: ELF-Signal, outdoor, over water vein, signal clipped at -100 mV

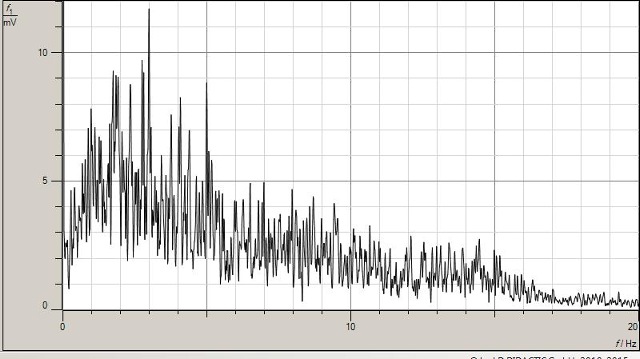

Abb. 33:   FFT,  ELF-Signal, outdoor, over water vein

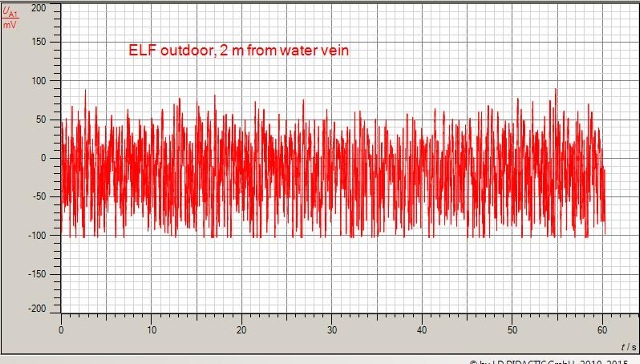

Abb. 34: ELF-Signal, outdoor, 2 m near water vein, signal clipped at -100 mV

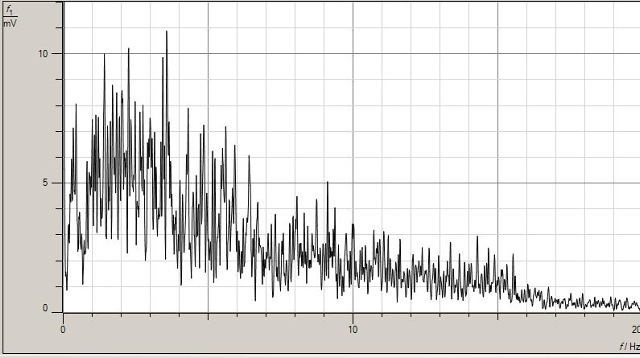

Abb. 35: FFT,  ELF-Signal, outdoor, 2 m near water vein

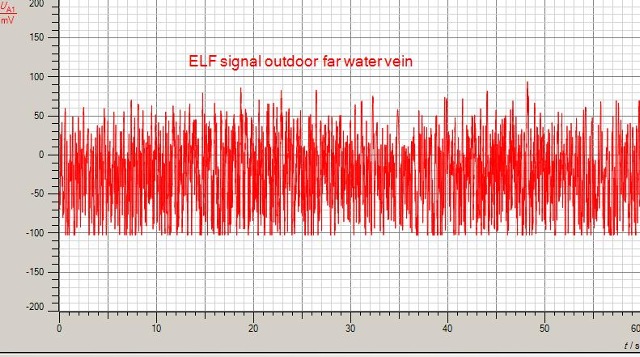

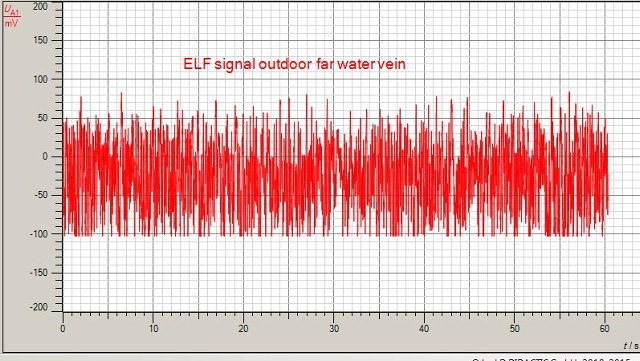

Abb. 36: ELF-Signal, outdoor, 4 m far from water vein, signal clipped at -100 mV
Abb. 37: postion with 9 Hz signal??? (FB)

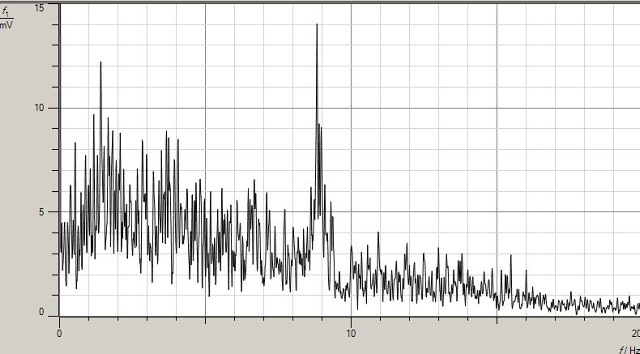

Abb. 37a:  FFT,  ELF-Signal, outdoor, 4 m far from water vein, 9 Hz Signal
Abb. 38: ELF-Signal, outdoor, 3.5 m far from water vein, signal clipped at -100 mV
Abb. 39: FFT,  ELF-Signal, outdoor, 3.5 m far from water vein
Abb. 40: near house (FB)

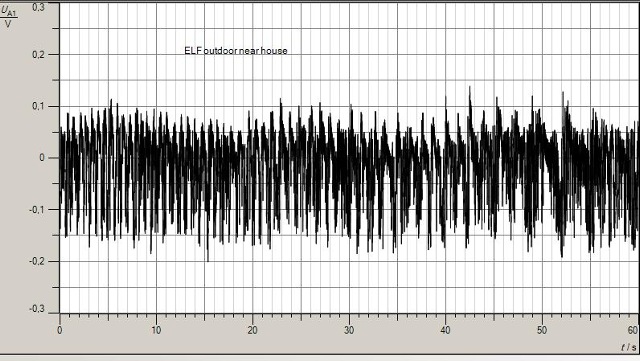

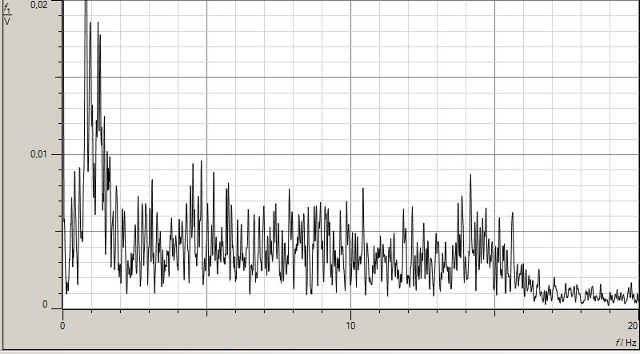

Abb. 40a: ELF-signal, outdoor, near house,    signal greater than 100 mV, not clipped
Abb. 41: FFT, ELF-signal, outdoor, near house


Influence of power line, 50 Hz

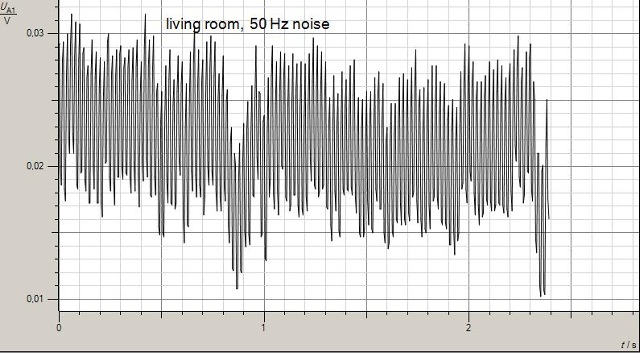

Abb. 42: QSS-Signal, 5 ms sample

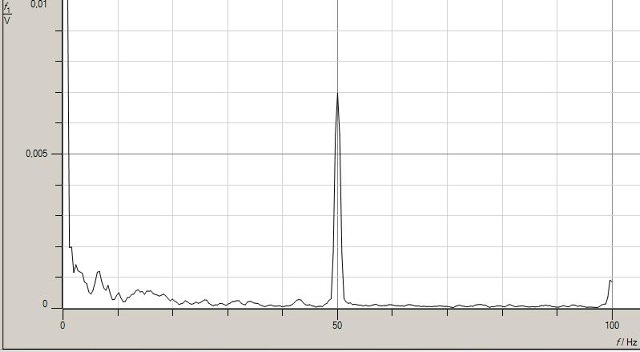

Abb. 43:  FFT, 50 Hz



Rotation, turn table

Abb. 44: The wooden handle can be attached in steps to 90 degree. (FB)
Abb. 45: plastic rails for linear movement (FB)

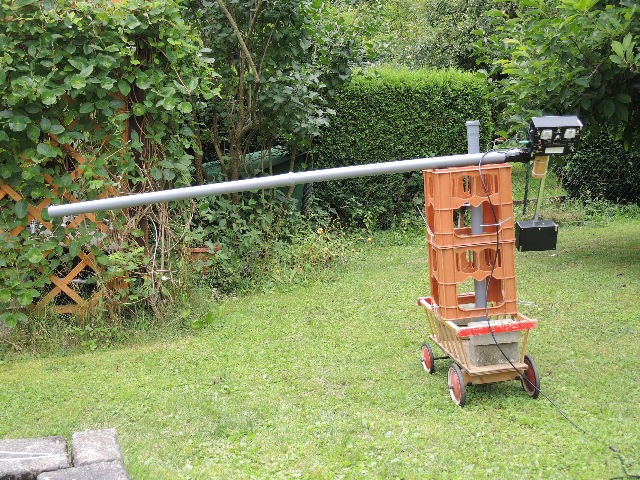

Abb. 46: Plastic tube as a long handle with counterweight - usefull for holding in hand. (FB)
Abb. 47: Works as a turn table, 1 m heigth (FB)
Abb. 48: works as a turn table, 2 m heigth (FB)
Abb. 49: works as a turn table, 3 m heigth (FB)
